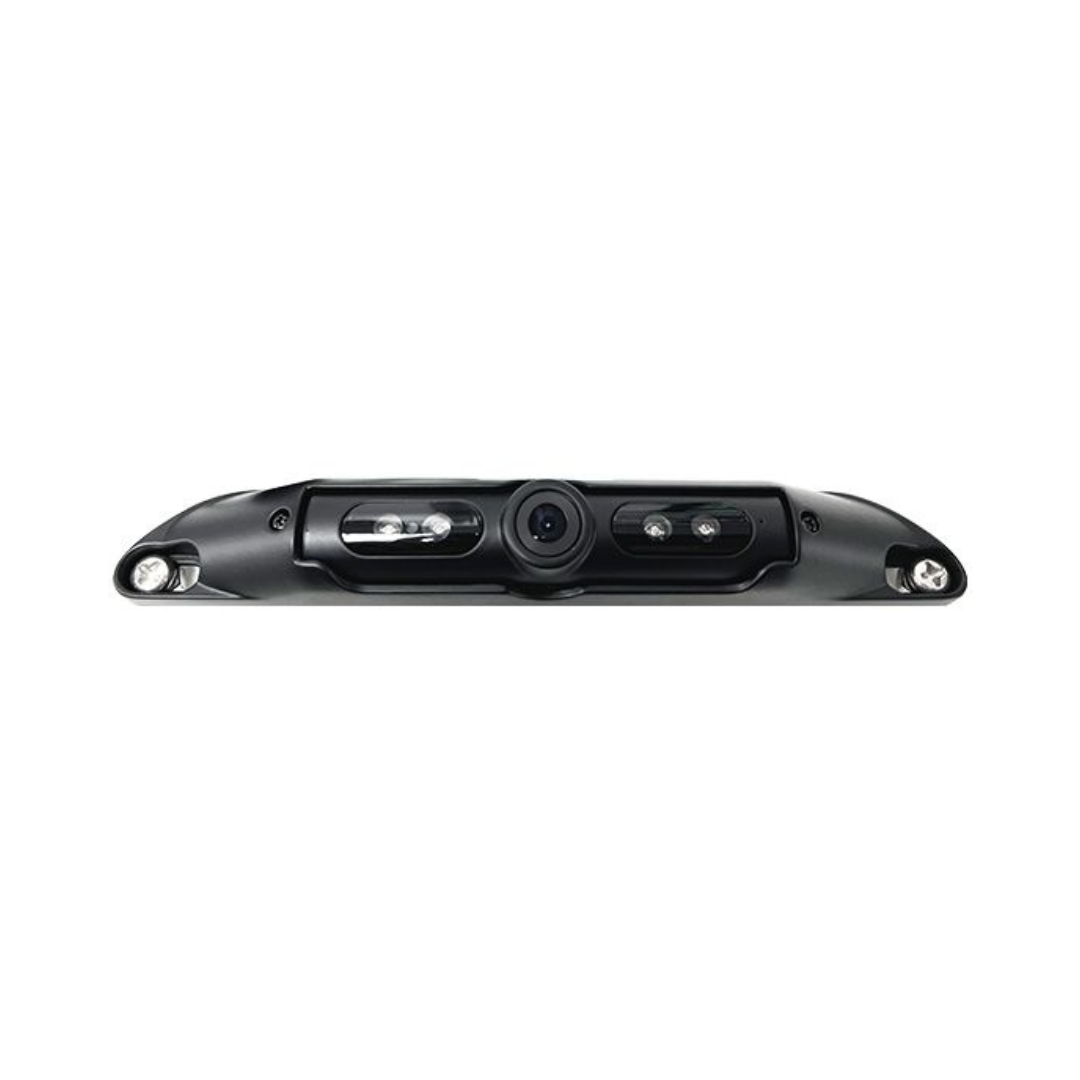

Jenna (AHD) - Strip Camera (4 Pin)

AHD 1080p Strip Camera – IR Night Vision, Audio & IP68 Rated

Built for discreet mounting, full HD performance, and all-weather reliability – this slimline AHD strip camera delivers 1080p video, infrared night vision, and integrated audio. Ideal for rear, front, or internal mounting on commercial and fleet vehicles where space is limited but clarity is essential.

Key Features:

• TV System: AHD 1080p – delivers high-definition video with sharp clarity

• Effective Pixels – 1920 × 1080 for full HD image quality

• Viewing Angle – 110° (Horizontal) / 80° (Vertical) for excellent coverage

• Night Vision IR – 4 integrated IR LEDs for 0 Lux performance in complete darkness

• Mirror Image – factory-set for reverse viewing (non-selectable)

• Built-in Microphone – captures audio along with video

• Connection Type – 4-pin aviation for secure, vibration-resistant installation

• White Balance – automatic adjustment for accurate image tone

• Water & Dust Protection – IP68 rated for harsh environments

• Emark Certified – R10 approved for vehicle use

• Power Supply – 12V DC operating voltage

• No Guide Lines – clean image output without overlay

• Operating Conditions – Temperature: -20°C to +70°C / Humidity: <95%

• Storage Conditions – Temperature: -40°C to +80°C / Humidity: <95%

Dimensions:
198mm (W) x 28mm (H) x 28mm (D)
