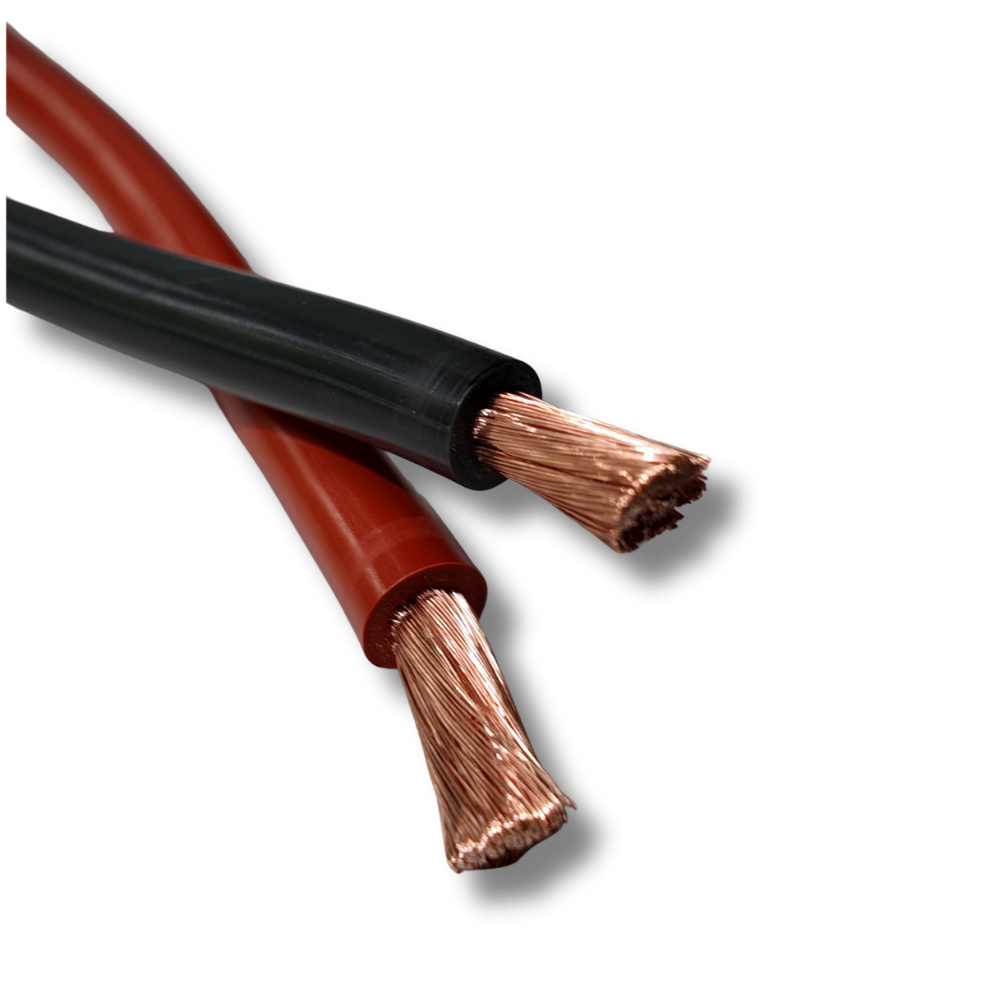

25mm High-Flex Battery Cable

25mm High-Flex Battery Cable

Our 25mm High-Flex Battery Cable is built for demanding high-current applications, offering exceptional conductivity, flexibility, and long-term durability. Perfect for automotive, HGV, marine, off-grid, inverter, and industrial power systems, this cable is designed to perform under pressure.

Available in lengths from 10 metres to 50 metres, and supplied in red and black, this cable is ideal for battery relocation kits, Anderson connections, inverters, split-charge systems, and custom electrical builds.

Key Specifications:

• Conductor Cross Section: 25mm²

• Colour: Red or Black

• Current Rating: 170 Amps

• Conductor Size: 322/0.30mm

• Maximum Cable Diameter: 10.1mm

• Maximum Load: 2040W @ 12V / 4080W @ 24V

• Resistance per Metre (20°C): 0.00077 Ω

• Available lengths: 10m - 50m
