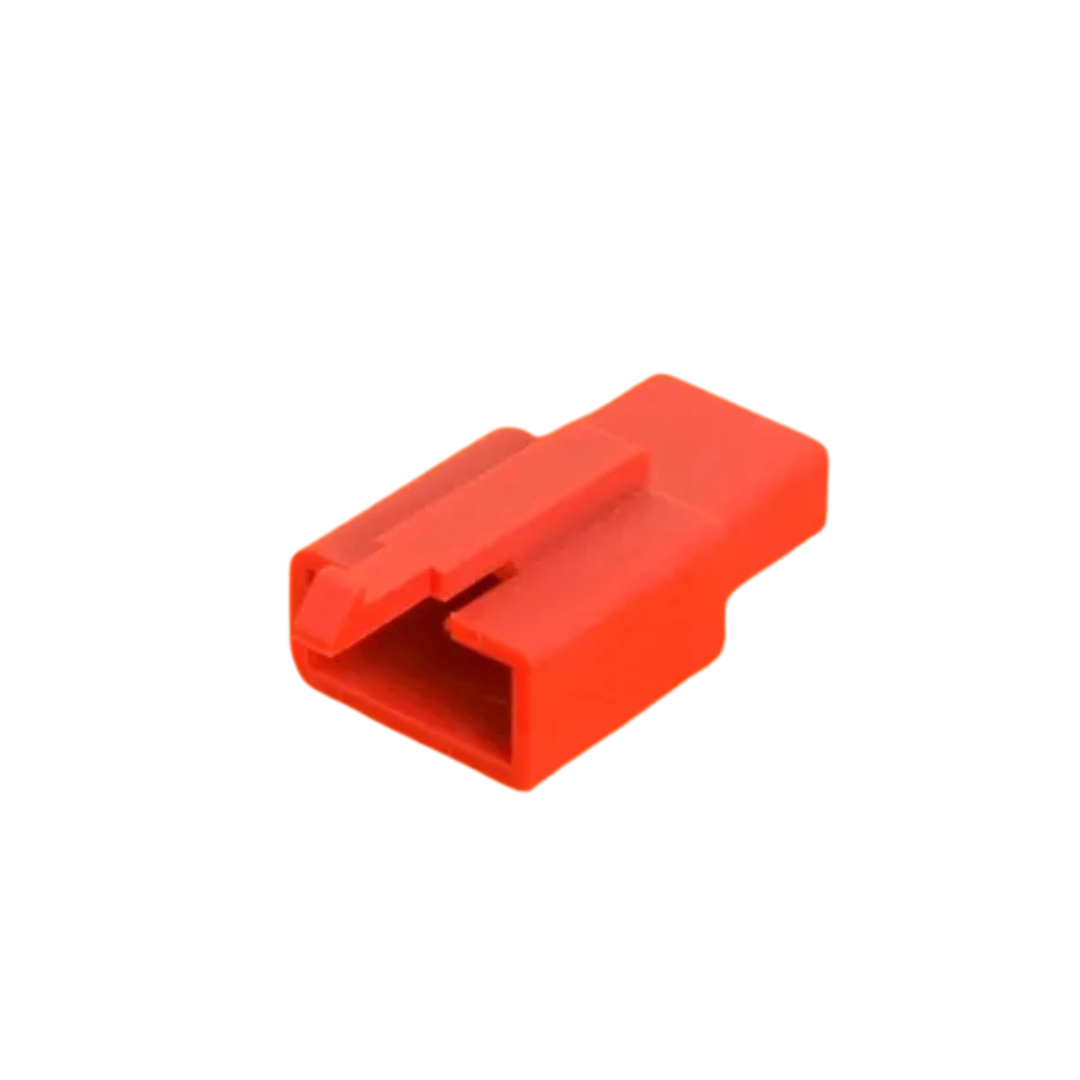

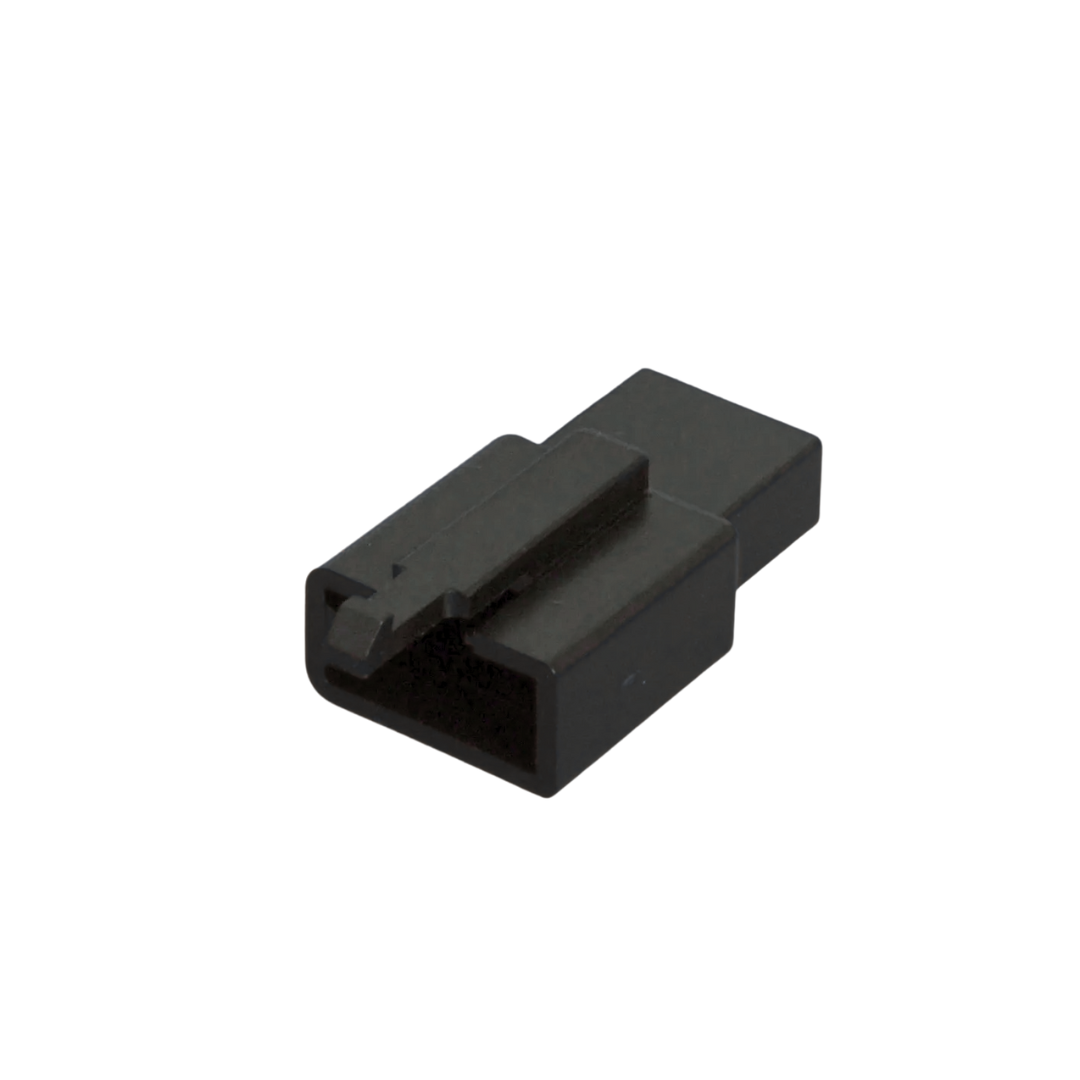

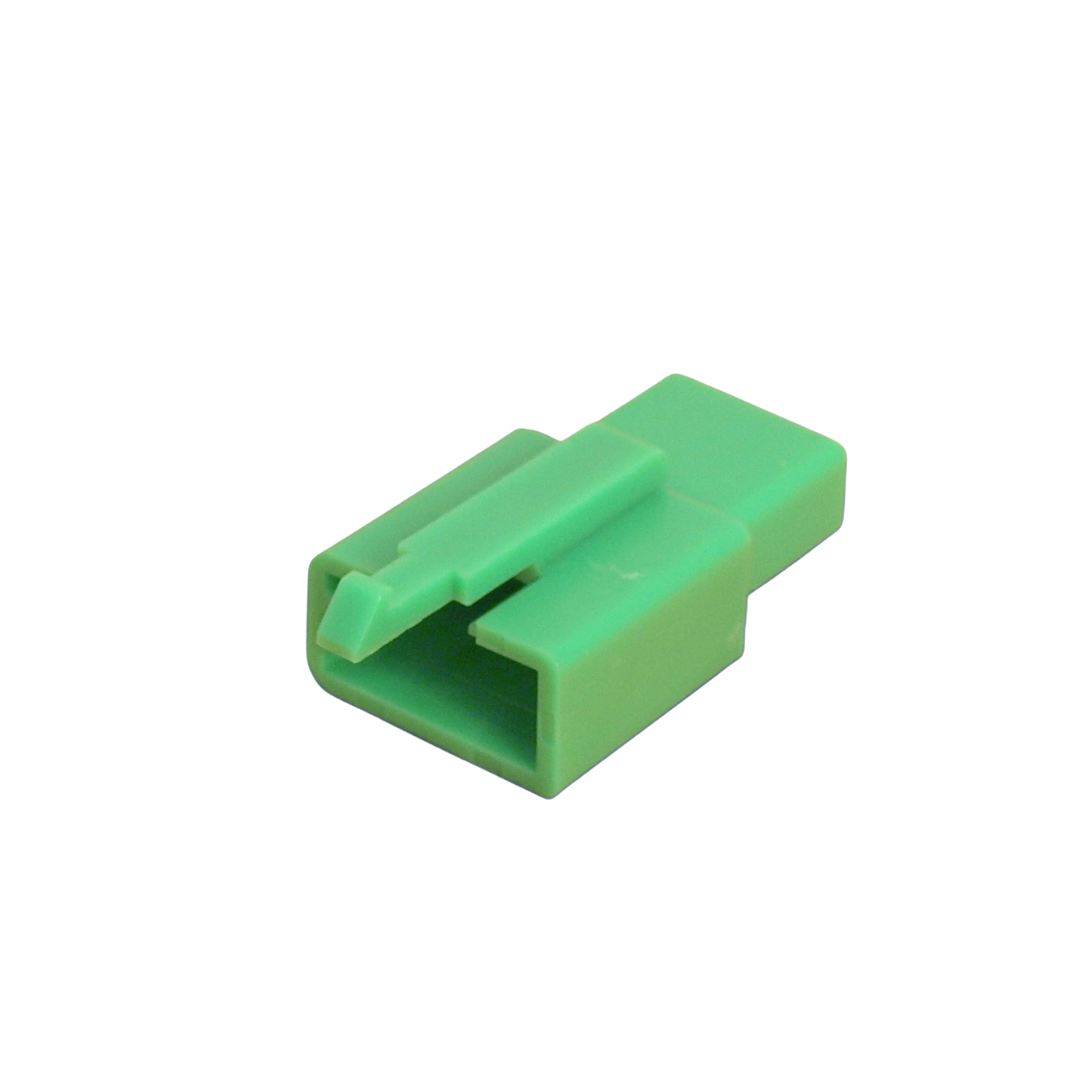

3 Way Female 2.8mm Mini Latch Housing - Multiple Colours

Automotive Connector Housing – 3-Way 2.8 mm Mini (Female)
Compatible with standard 2.8 mm male spade terminals and matching 3-way mini “male” housings

Designed for dependable electrical performance in demanding automotive environments, this compact 3-way 2.8 mm mini “female” socket housing provides a secure, polarised interface for power and signal circuits. Pair with 2.8 mm male spade terminals to build robust looms for vehicles and machinery.

Key Features:

• Series: 2.8 mm mini blade connector standard
• Connector Type: Female socket housing (accepts male spade contacts)
• Ways: 3 positions
• Termination: Crimp – uses 2.8 mm male spade terminals
• Wire Size Range: 0.50–1.00 mm² (approx. 20–18 AWG, per chosen terminal)
• Application: Designed to mate with matching 3-way mini male housings for compact, serviceable harness joints
• Retention/Locking: Polarised body with integral latch; terminal retention via internal tangs; strain relief guided by terminal selection
• Durable Design: Engineered to withstand vibration, heat cycling, and harsh automotive conditions; overall rating depends on terminal and wire gauge selection
