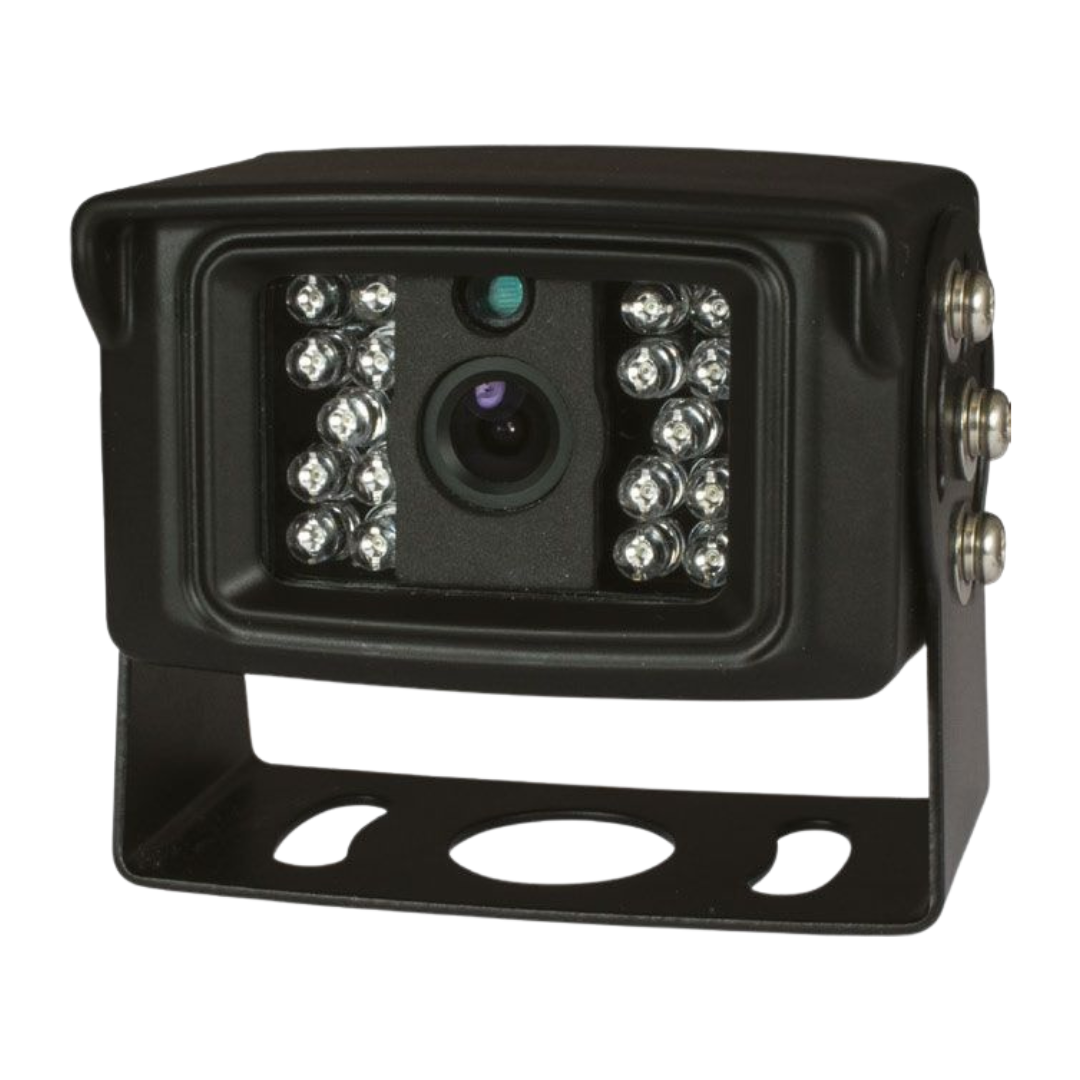

Leonardo (1080 AHD) - Rear Camera (4 Pin) - Customisable

AHD Heavy Duty Rear Camera – 1080p with Mirror Image (12V DC)

Built for high-definition reversing, rugged reliability, and wide-angle coverage – this heavy-duty AHD rear camera is ideal for commercial vehicles, trailers, and plant equipment, delivering sharp 1080p video with a mirror image for intuitive reversing.

Key Features:

• TV System: AHD – high-definition analogue video output
• Output Resolution – 1080p @ 25FPS for crisp rear-view footage
• Viewing Angle – 89° (Horizontal) / 72° (Vertical) / 103° (Diagonal) for broad rear coverage
• Image Sensor – 1/3” CMOS for consistent image performance
• Focal Length – f: 2.8mm for wide and balanced depth of field
• Mirror Image – factory-set for reverse orientation display
• Operating Voltage – 12V DC for standard vehicle integration
• Heavy-Duty Housing – built for external mounting in demanding environments

Dimensions:
80mm (W) x 63mm (D) x 70mm (H)
