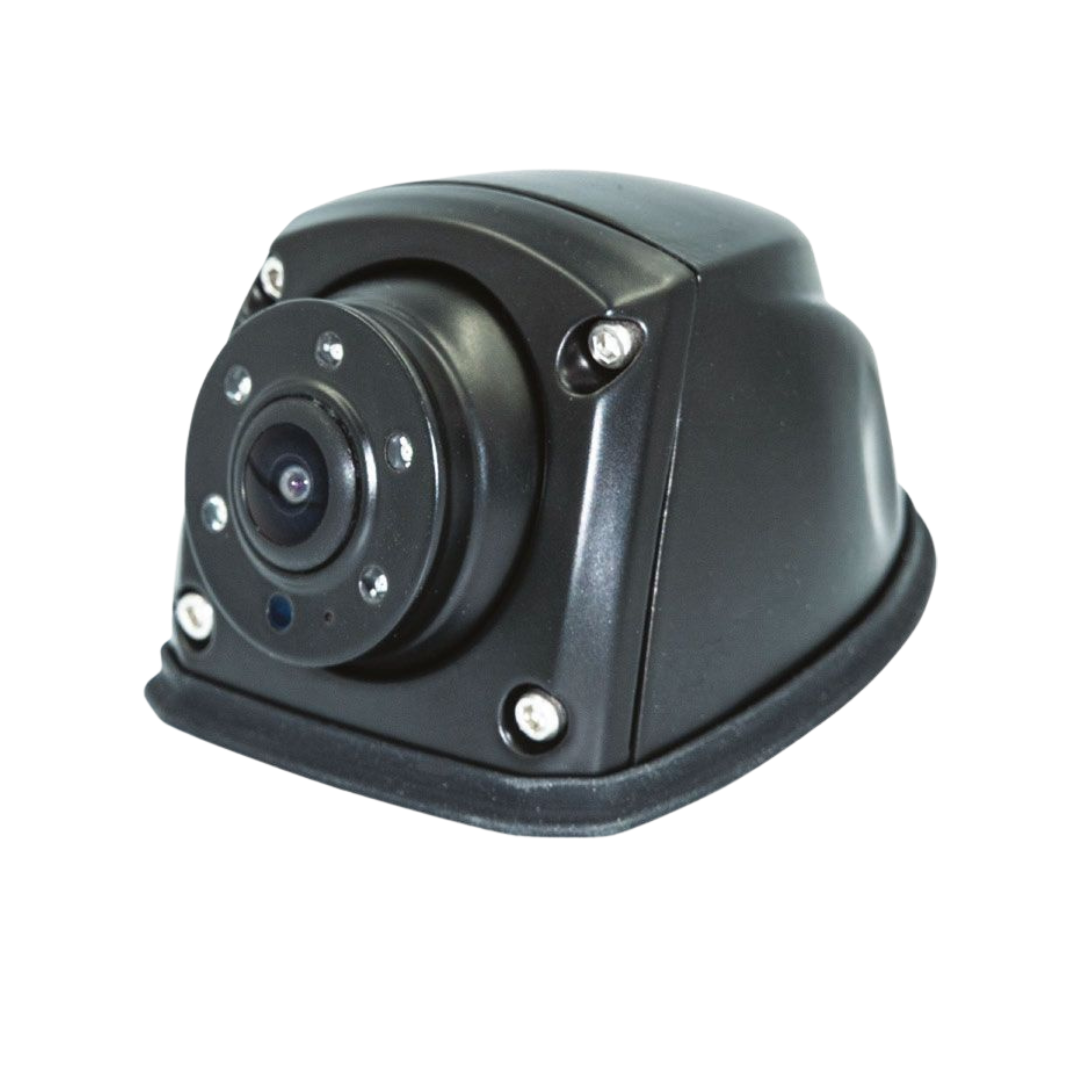

Tom (AHD) - Night Vision Side Camera (4 Pin) 1080P

AHD Night Vision Side Camera – 1080p with Audio, Mirror & Guide Line Options

Built for wide-angle visibility, low-light performance, and flexible installation – this AHD side camera delivers crisp 1080p video and includes selectable mirror image and guide lines, making it ideal for blind spot monitoring on commercial and fleet vehicles.

Key Features:

• TV System: AHD – high-definition analogue output for enhanced image quality
• Output Resolution – 1080p @ 25FPS for smooth, clear footage
• Viewing Angle – 140° (Horizontal) / 80° (Vertical) for maximum side coverage
• Image Sensor – 1/4” CMOS for reliable performance in varied lighting
• Focal Length – f: 2.8mm for wide yet focused field of view
• Night Vision – suitable for low-light and night time operation
• Mirror Image Selectable – for left or right mounting flexibility
• Guide Lines Selectable – visual reference for driver assistance
• Built-in Microphone – captures audio alongside video feed
• Operating Voltage – 12V DC standard vehicle power
• Durable Housing – compact and weather-resistant for exterior mounting

Dimensions:
60mm (W) x 75mm (D) x 50mm (H)
