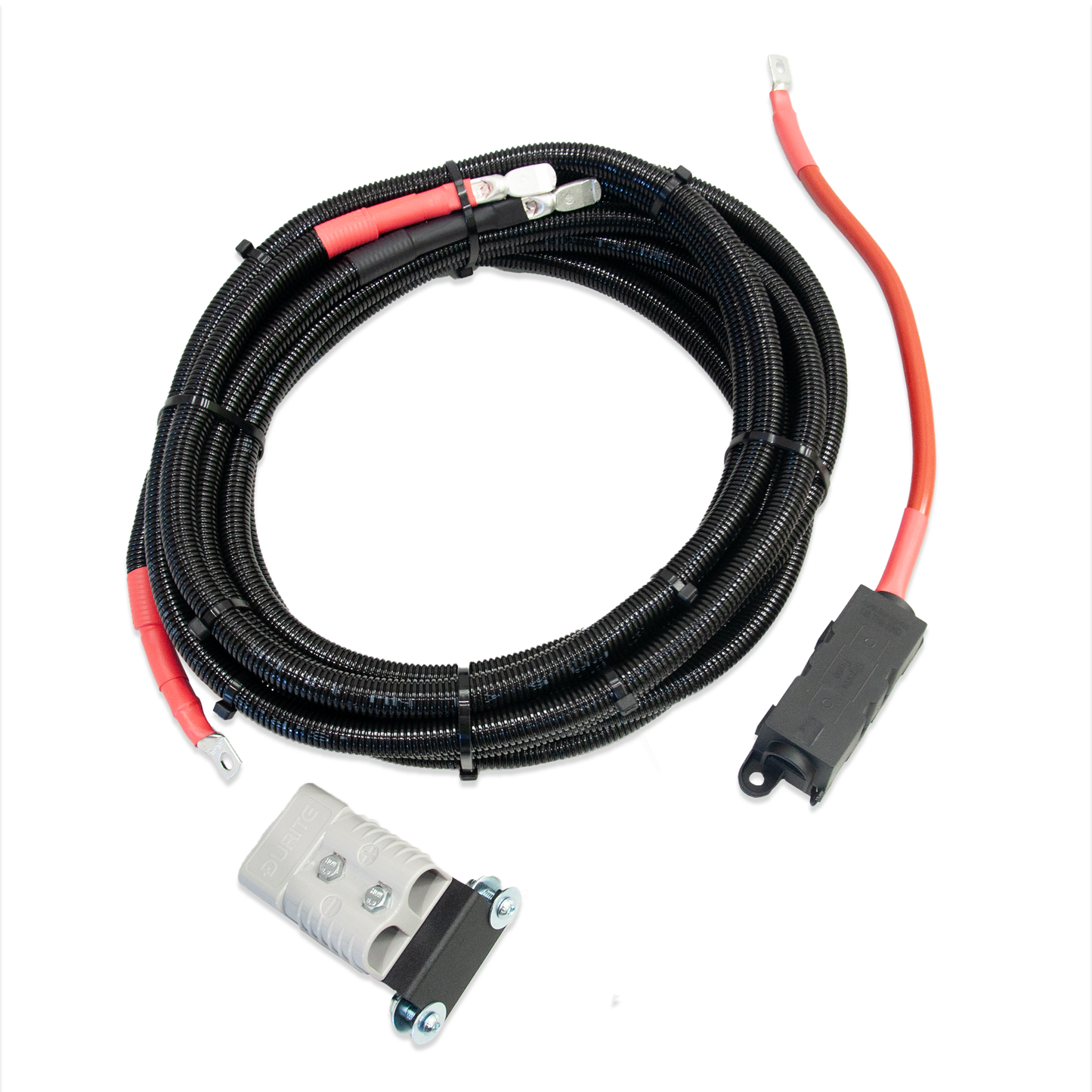

MAN TG3 - Anderson Lead Kit - Side Mount

Side Anderson Battery Kit – MAN Vehicle Specific

Engineered exclusively for MAN trucks, the Side Anderson Battery Kit from Fir Tree Technology delivers a durable and dependable 24V power connection for rear-mounted systems. Built to OEM standards, this weatherproof assembly ensures consistent high-current transfer and seamless integration with MAN’s Trucks, This Anderson Kit is designed for MAN trucks with side mounted battery's, Rear mounted battery option also available.

This Anderson side battery kit is designed and made in house by our experienced team, specially for MAN HGV'S with side mounted batteries (Will not fit other vehicle types) Fully custom lengths with terminals and mounted brackets

Average install time - 1.5 hours

Key Features

• Vehicle Compatibility: Designed specifically for MAN HGVs

• Voltage Compatibility: 24Volts, 175amp Anderson

• Connection Type: Side mounted battery Anderson connector secured with MAN designed bracket

• Lead Terminals:

  • Positive lead with M8 ring terminal - Anderson Terminal

  • Earth lead with M10 ring terminal - Anderson Terminal

• Integrated Protection: single fuse holder with 200amp Mega Fuse, terminated with M10 ring terminal

• Heavy-Duty Construction: Built using 35mm² PVC high-flex battery cable for maximum current flow and protected with hard wearing conduit

• Plug-and-Play Installation: Pre-crimped, ready to fit directly to MAN factory pick up point locations, following OEM guidelines.

Technical Specifications

• Voltage: 24V DC

• Fuse Rating: 200A Mega Fuse

• Connector: Anderson Power Connector 175 amp

• Cable Type: 35mm² PVC High-Flex Battery Cable

• Mounting: Side chassis location – MAN vehicle specific

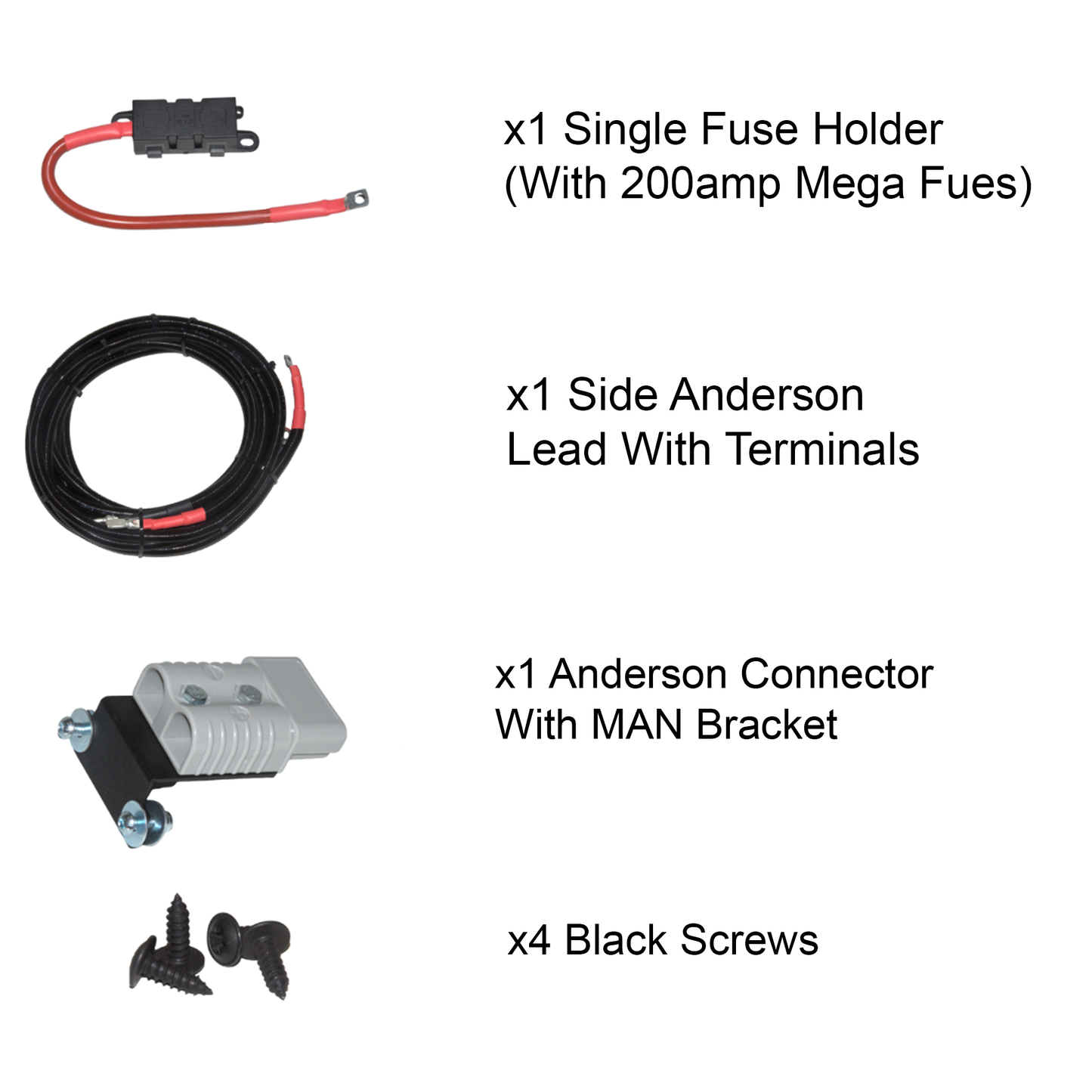

Kit Includes

• x1 Side Anderson Wiring Leads
• x1 Single Fuse holder with Lead and 200amp Mega Fuse
• x1 Grey Anderson Connector Plug with Bracket
• x4 Black 4.2 x 13mm Pan Head Screws
