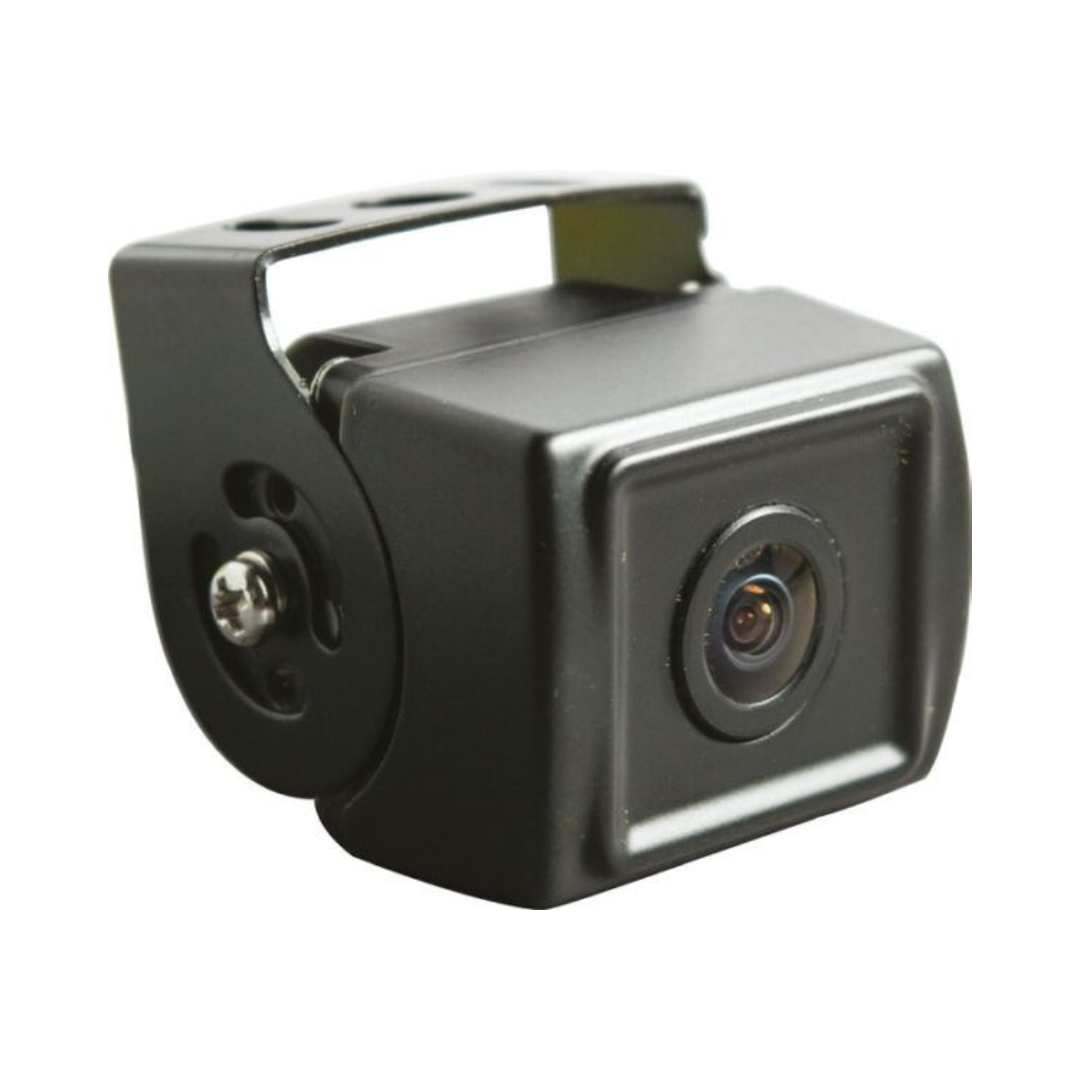

Dwayne (800TVL) - Front Camera (4 Pin)

800TVL Front Camera – PAL with Mirror Option (4-Pin Aviation)

Built for sharp front-end visibility, compact fitment, and flexible integration – this 800TVL front-facing camera delivers clear analogue video using a SONY CCD sensor and includes selectable mirror image functionality via green wire cut.

Key Features:

• TV System: PAL – standard analogue output for compatibility with most vehicle monitors
• 576i Resolution @ 25FPS – smooth, clear image for forward-facing applications
• Effective Pixels – 976 × 582 for crisp video quality
• 1/3” SONY CCD Sensor – reliable performance in variable lighting conditions
• Viewing Angle – 110° (Horizontal) / 80° (Vertical) for balanced wide coverage
• Focal Length – f: 2.3mm for focused, wide-range clarity
• 4-Pin Aviation Connector – secure and vibration-resistant for vehicle use
• Mini BMW to 4-Pin Adapter – easy integration with common camera systems
• Mirror Image Selectable – enable or disable by cutting the green wire
• 12V DC Operating Voltage – compatible with standard vehicle power systems
• Compact Design – ideal for discreet mounting on grilles, bumpers, or valances

Dimensions:
39mm (W) x 35mm (D) x 30mm (H)
