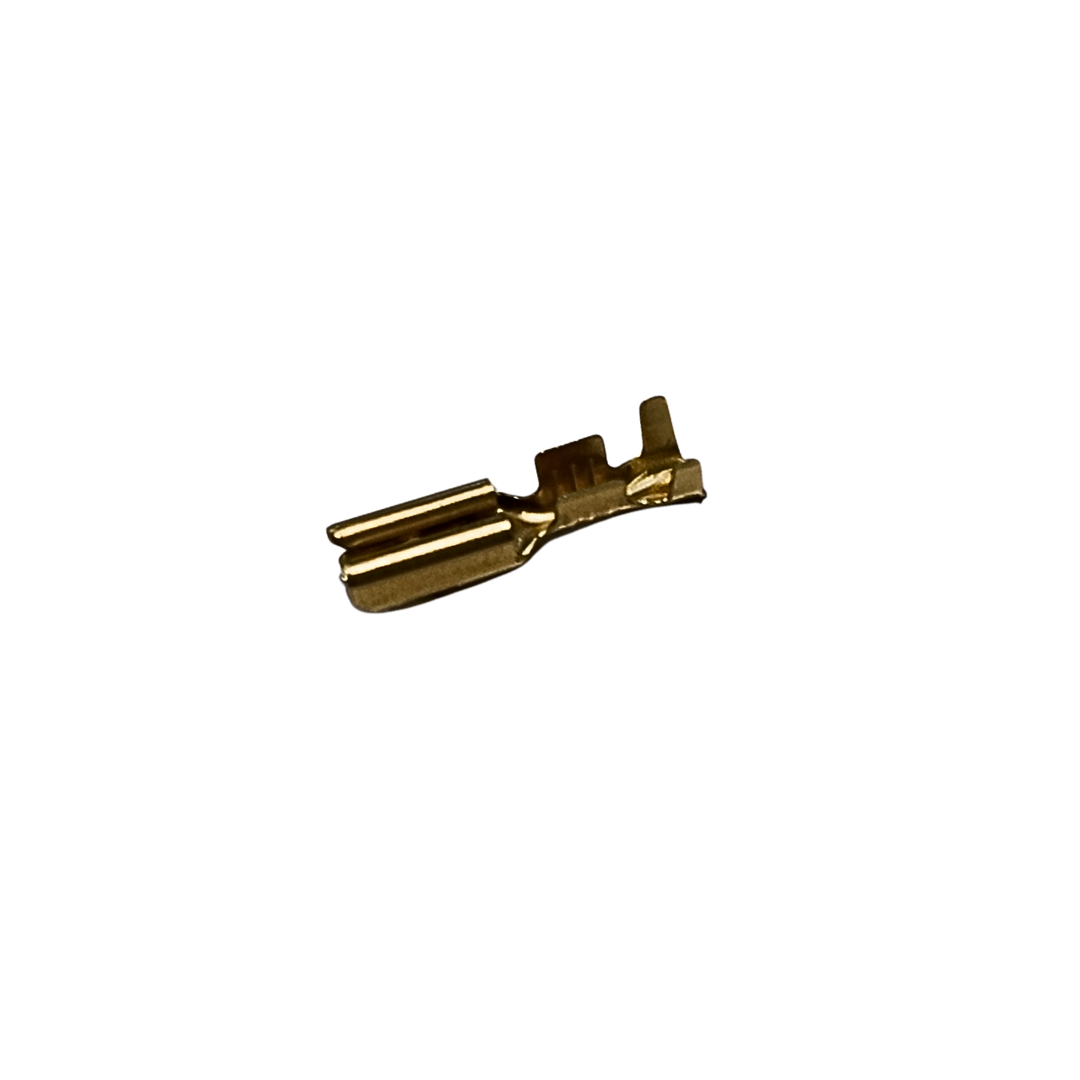

Female Mini Latch Terminal 2.8mm Series

Automotive Connector Contact – 2.8 mm Female Receptacle (Crimp Type)
Compatible with standard 2.8 mm male spade terminals and multi-block housings

Designed for dependable electrical performance in demanding automotive environments, this 2.8 mm female receptacle ensures a secure, low-resistance mate with 2.8 mm male blades. The open-barrel crimp design supports fast, consistent terminations for vehicle and machinery applications.

Key Features:

• Series: 2.8 mm blade/receptacle standard

• Contact Type: Socket (Female receptacle)

• Termination: Crimp – suitable for standard automotive open-barrel crimp tools

• Wire Size Range: 0.50–1.00 mm² (Min 20 AWG to Max 18 AWG)

• Application: Designed for use with 2.8 mm male spade contacts in automotive connector housings and quick-connect blocks

• Material: Tin-plated copper alloy for reliable conductivity and corrosion resistance

• Use Case: Ideal for wiring looms, switch/fuse panels, ECU interfaces, power distribution boards (rear/side), and rear Anderson auxiliary feeds via adaptor looms

• Durable Design: Engineered to withstand vibration, heat, and harsh automotive condition
