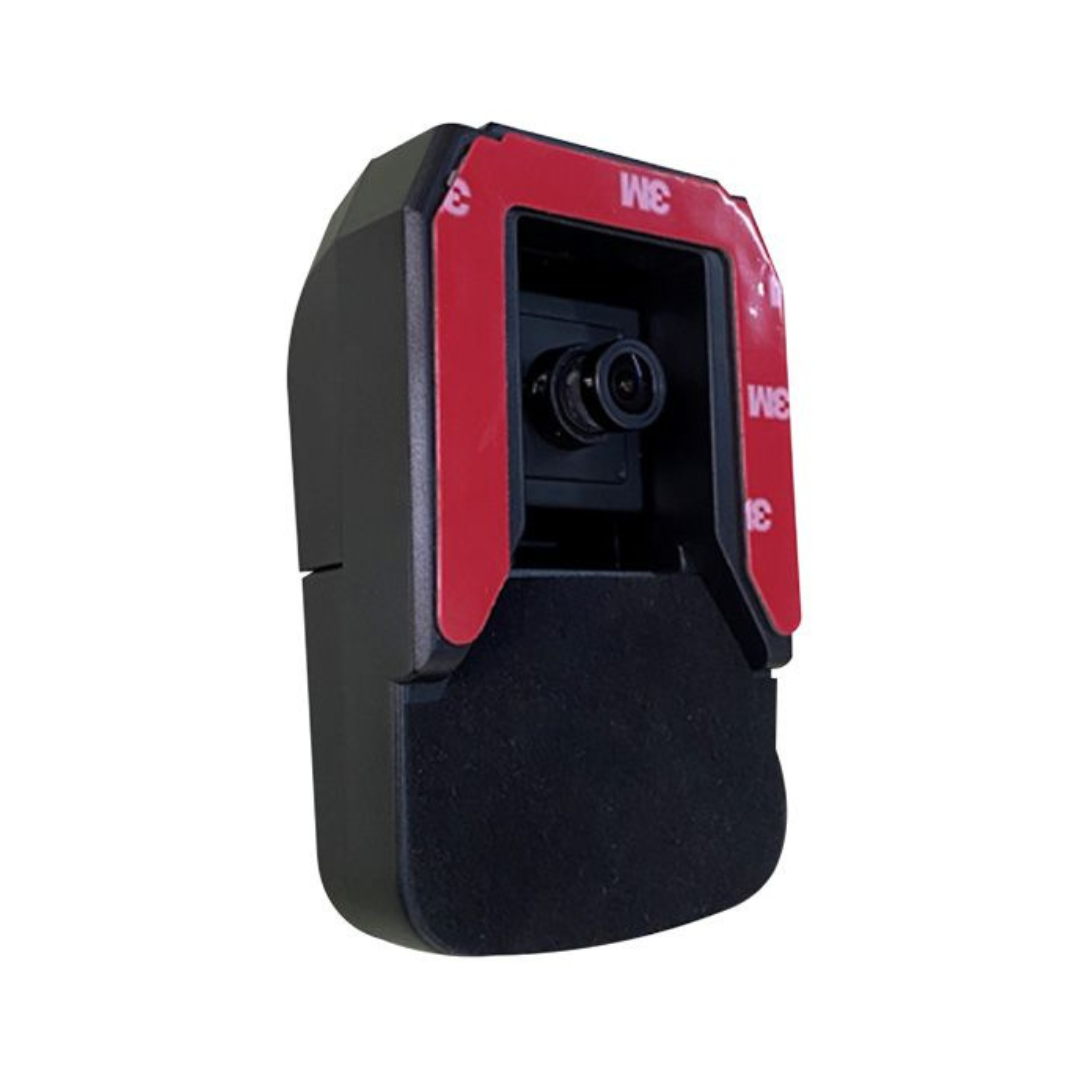

Chris (AHD) - Forward Facing Camera (IPC)

Forward Facing IP Camera – 1080p, 2.0MP with Wide Operating Range

Built for high-resolution performance, network integration, and dependable operation in harsh environments – this forward-facing IP camera delivers crisp 1080p video with flexible frame rates and advanced image control, making it ideal for transport, security, and fleet monitoring systems.

Key Features:

• Resolution: 2.0 Megapixel (1080p) – 1920H × 1080V for sharp, detailed video

• Video Format – 50Hz @ 25fps / 60Hz @ 30fps for smooth recording

• Multi-Resolution Support – 1080P, 960P, 720P, D1, VGA, CIF, QVGA

• Lens – f=3.6mm standard with optional 2.8mm or 6mm variants

• View Angle – 75° standard for forward coverage

• Electronic Shutter – PAL: 1/251/10000s | NTSC: 1/301/10000s

• Low-Light Sensitivity – Colour: 0.05 Lux @ F1.2 | B/W: 0.01 Lux @ F1.2

• Image Enhancements – Auto Gain Control, White Balance, Back Light Compensation

• Power Consumption – 12V DC ±5%, 240mA (Max 3.0W)

• Rugged Operating Range – -45°C to +75°C, humidity <95%

• Compact, Durable Housing – suitable for exposed forward-facing installations

Dimensions:
49mm (L) x 75mm (W) x 122mm (H)
Weight: 145g (net), 265g (gross)
