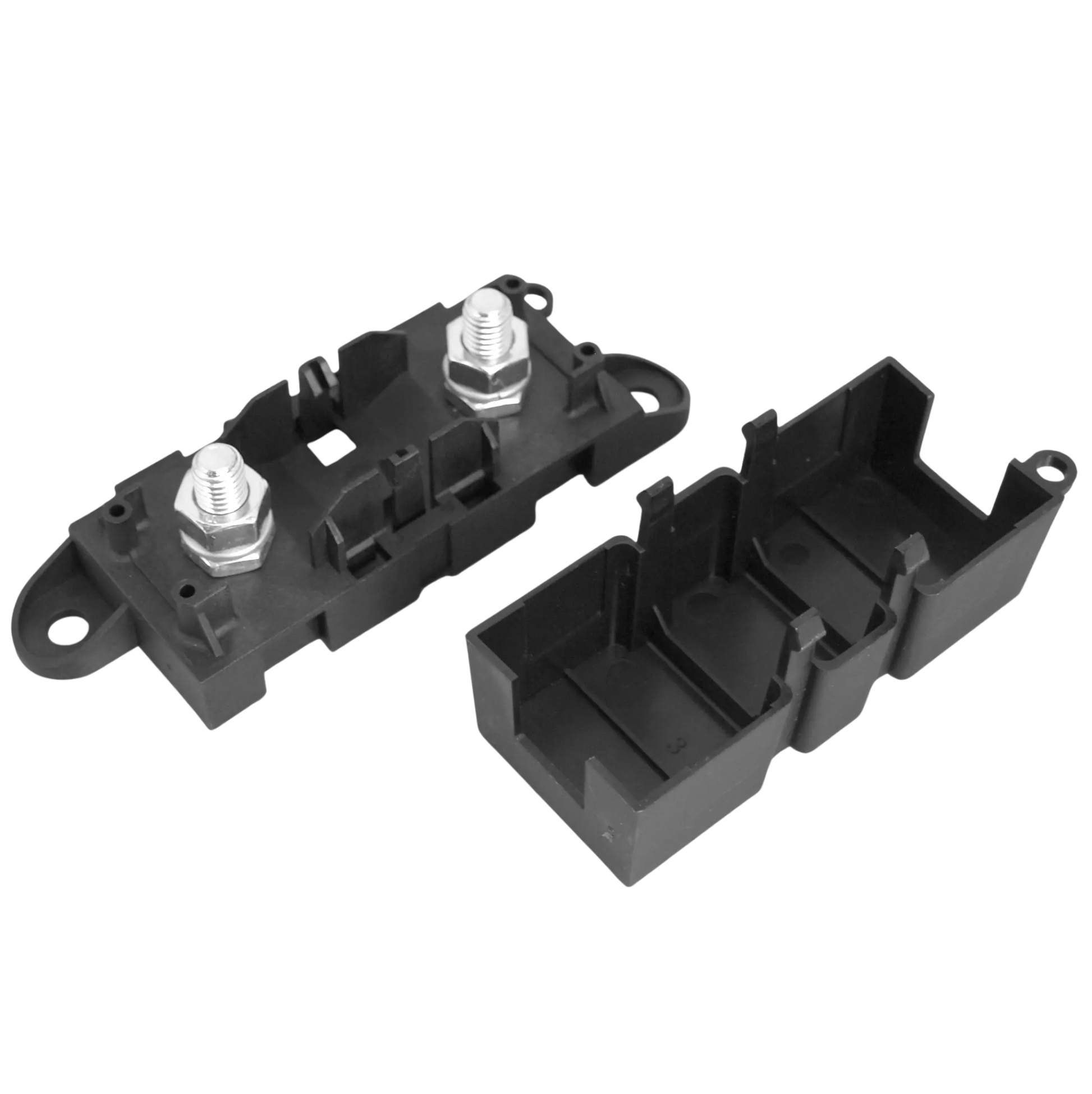

Mega Fuse Holder

Mega/AMG Fuse Holder – 12/24 V (60–500 A)

Heavy-duty inline protection for high-current circuits on HGVs, vans, plant and marine. Takes standard MEGA/AMG bolt-down fuses from 60 A up to 500 A.

Key Features

• Secure clamping: Fuses fasten with 2 × M8 (8 mm) studs – studs supplied.
• High capacity: Accepts MEGA/AMG fuses up to 500 A (12/24 V systems).
• Easy install: Supplied with 2 × mounting feet for bulkhead/tray fitment.
• Use cases: Battery mains, inverters, winches, DC-DC chargers, Anderson take-offs, distribution blocks.

Dimensions

• Length: 85 mm
• Width: 40 mm
• Depth/Height: 39 mm
• Fixing hole spacing: 50 mm (centre-to-centre)

What’s Included

• 1 × Mega/AMG fuse holder base & cover

• 2 × M8 studs (for fuse clamping)

• 2 × Mounting feet

Install Notes

• Mount as close to the battery positive as practical (often within ~150 mm).

• Use correctly sized cable and M8 ring lugs; torque firmly, avoid over-tightening.

• Choose the fuse to suit cable rating first, then expected load (often 125–150% of continuous current; check surge requirements).
