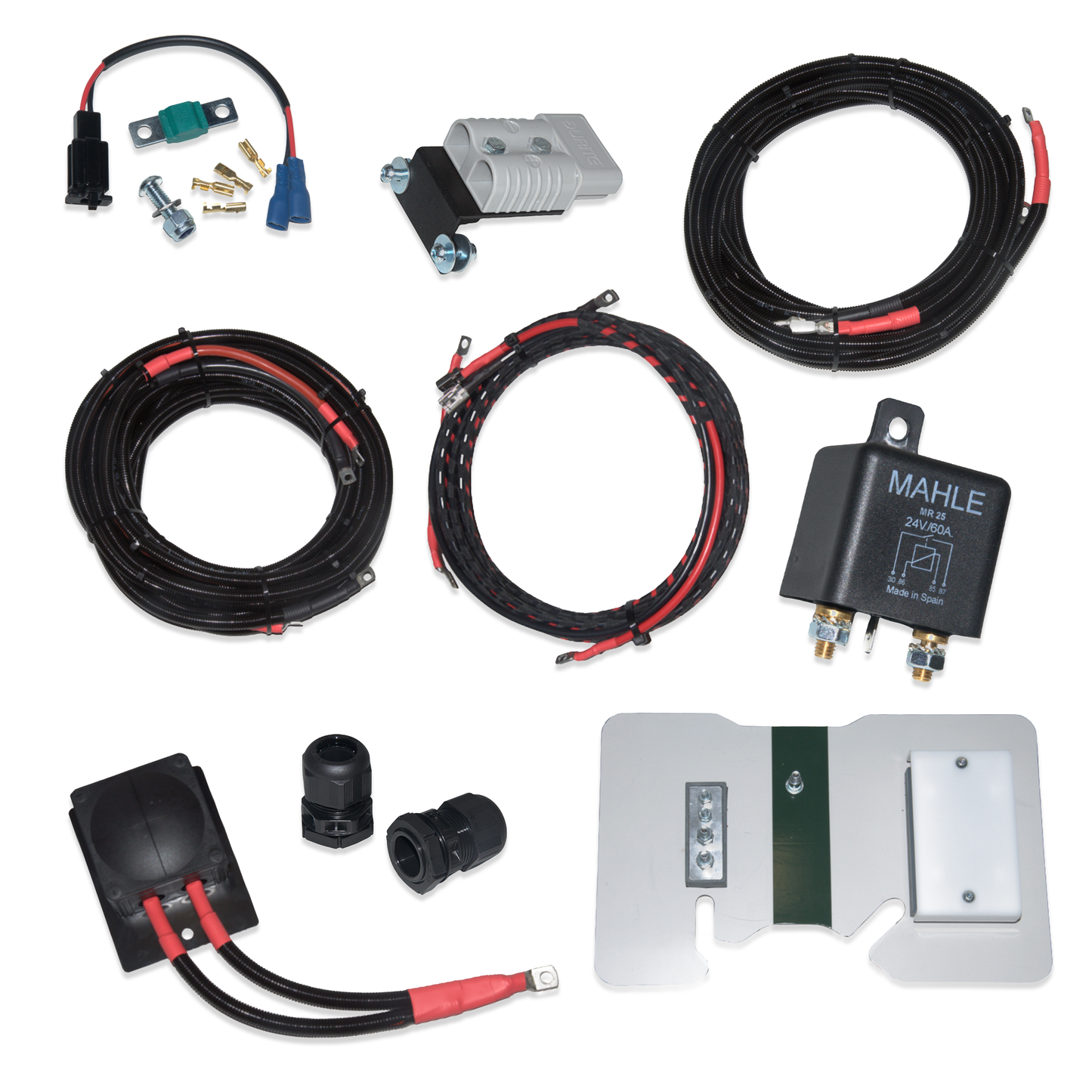

MAN TG3 - Microwave Harness & Anderson Lead Combi - Battery Rear Kit

MAN TG3 - Microwave Harness & Anderson Lead Combi - Battery Rear Kit

This Rear Combi Kit from Fir Tree Technology is a complete 24 Volt power solution designed specifically for MAN Trucks to allow easy connection for high power consumables, Combining a rear battery mounted Anderson connector with a waterproof double fuse holder, leading to an in-cab power distribution board, and a dedicated microwave wiring harness ready for install of a microwave in top locker (Microwave not included)

Pre-assembled wiring and an integrated relay system allow the microwave to automatically power off when the locker door is closed, ensuring both safety and energy efficiency. This all-in-one kit delivers dependable, fused power from battery to cab, built to OEM standards for durability and performance.

Average Installation time - 2 hours

Key Features

• Vehicle Compatibility: Designed specifically for MAN HGVs
• Function: Combines Anderson connector 175 amp, fused power distribution, and microwave wiring harness
• Connection Type: Rear-mounted Anderson connector for secure, high-current external or auxiliary power use
• Power Input: Direct battery feed using 35mm² PVC high-flex battery cable
• Microwave Harness: Pre-terminated, plug-and-play harness designed for safe, reliable microwave installation inside the cab (Microwave not included)
• Integrated Protection: Waterproof twin fuse holder with x2 200A Mega Fuse for main circuit safety
• Heavy-Duty Build: Weather-sealed, vibration-resistant
• Plug-and-Play Installation: Pre-crimped and pre-wired for straightforward integration with MAN factory battery positions

Technical Specifications

• Voltage: 24V DC
• Main Fuse Rating: x 2 - 200amp Mega Fuses
• Connector: Anderson Power Connector 175 amp (Grey or Red depending on polarity standard)
• Anderson & Power Distribution Cable Type: 35mm² PVC High-Flex Battery Cable
• Microwave Wiring Cable Type: 8.5mm Single Core PVC Cable
• Terminals: M8 (Positive) / M10 (Earth)

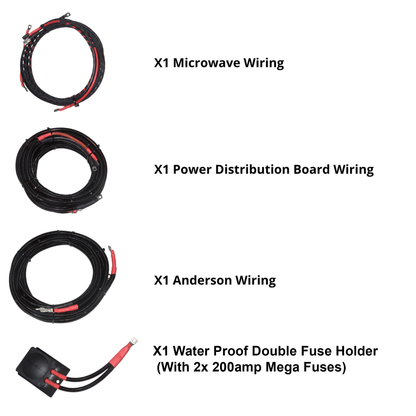

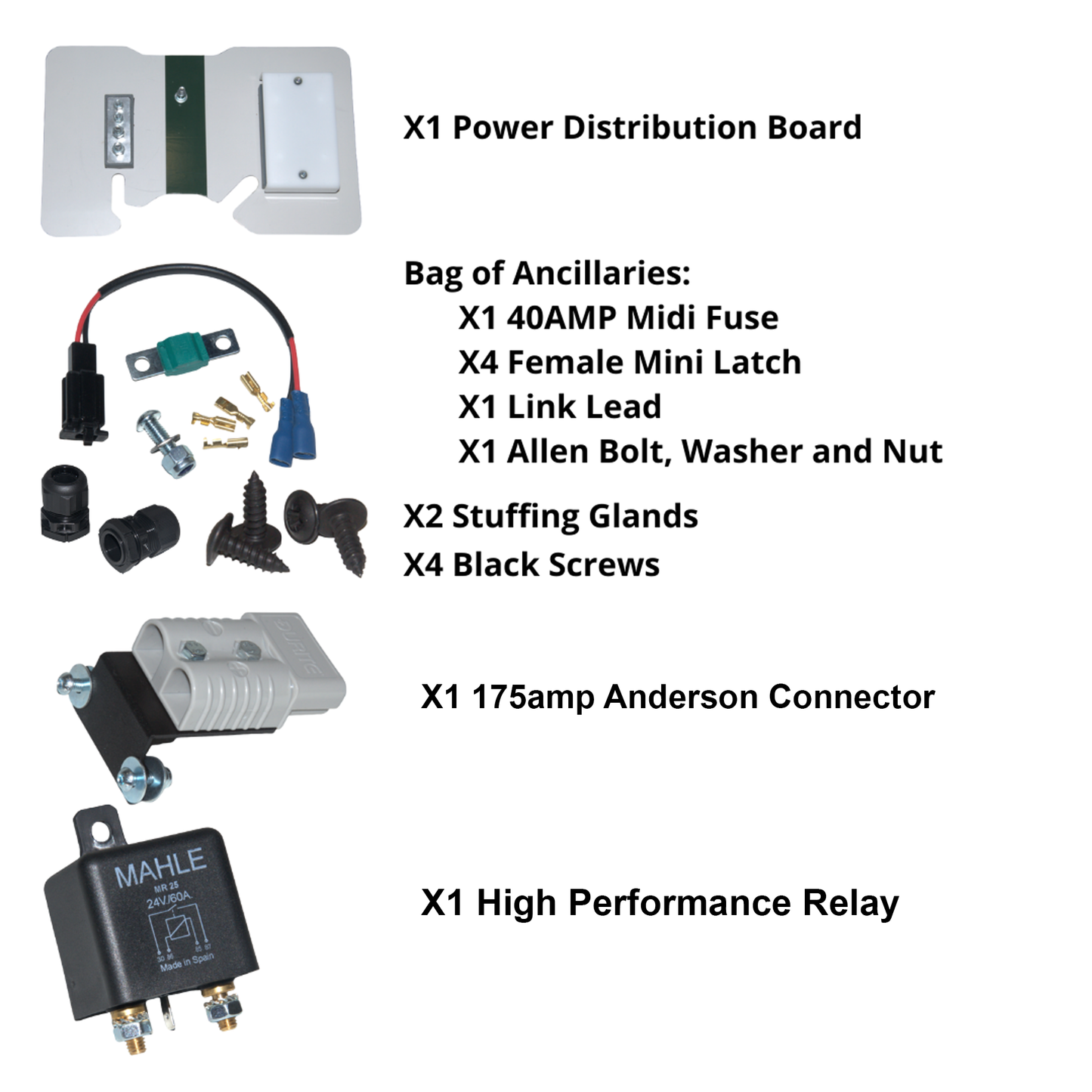

Kit Includes

• x1 Rear Anderson Harness
• x1 Grey Anderson 175 amp Connector Plug with MAN Bracket
• x1 Waterproof Twin Fuse Holder with Wiring and x2 200amp Mega Fuses

• x1 Power Distribution Board Harness
• x1 Power Distribution Board
• x2 25mm Black Stuffing Glands
• x1 Microwave Wiring Harness
• x1 24v/60amp High Performance Relay
• x1 40amp Midi Fuse
• x4 Female Mini Latch Pins
• x1 Microwave Link Lead
• x1 Allen Head Bolt, Washer and Nyloc Nut
