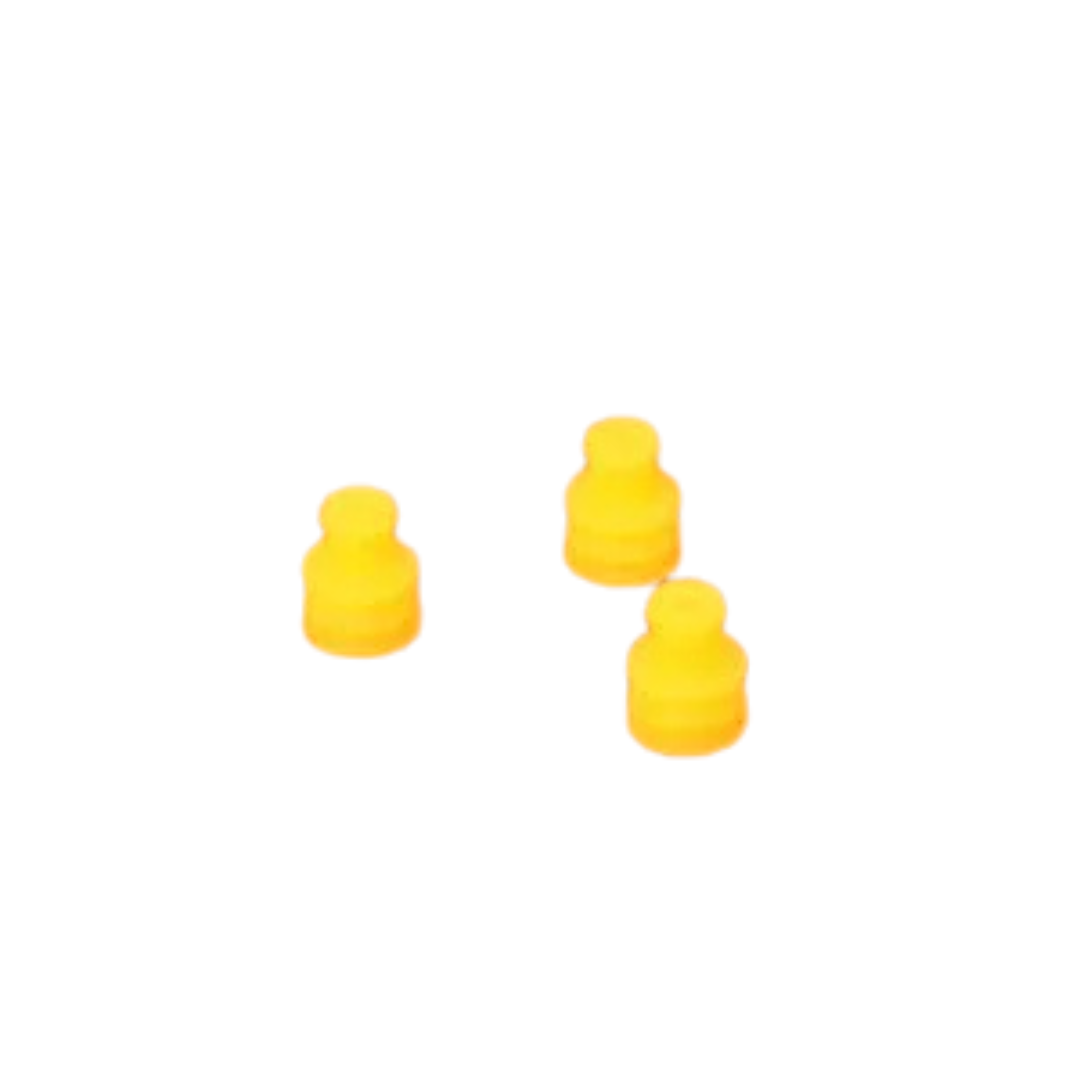

TE Connectivity Superseal 1.5 Series Yellow Wire Seal

TE Connectivity Superseal 1.5 – Yellow Single Wire Seal (0.50–1.50 mm²)

Series: Superseal 1.5
Type: Single Wire Seal (SWS) / cable seal
Color: Yellow
Material: Silicone rubber (LSR), Shore A ≈ 50, with lubricant
Operating temp.: −40 °C to +130 °C
Recommended wire cross-section: 0.50–1.50 mm² (approx. AWG 20–16)
System rating: When used with Superseal 1.5 terminals/housings, assembly meets IP67 (proper crimp/assembly required)
Compatibility: For TE Superseal 1.5mm series terminals & housings (e.g., 2–6 way, etc.)
Notes: Silicone has poor resistance to hydrocarbons; avoid continuous oil/fuel exposure.

What it does: Provides environmental sealing around the wire entry of SuperSeal 1.5 connectors, maintaining IP67 performance against dust and water ingress when correctly assembled.
